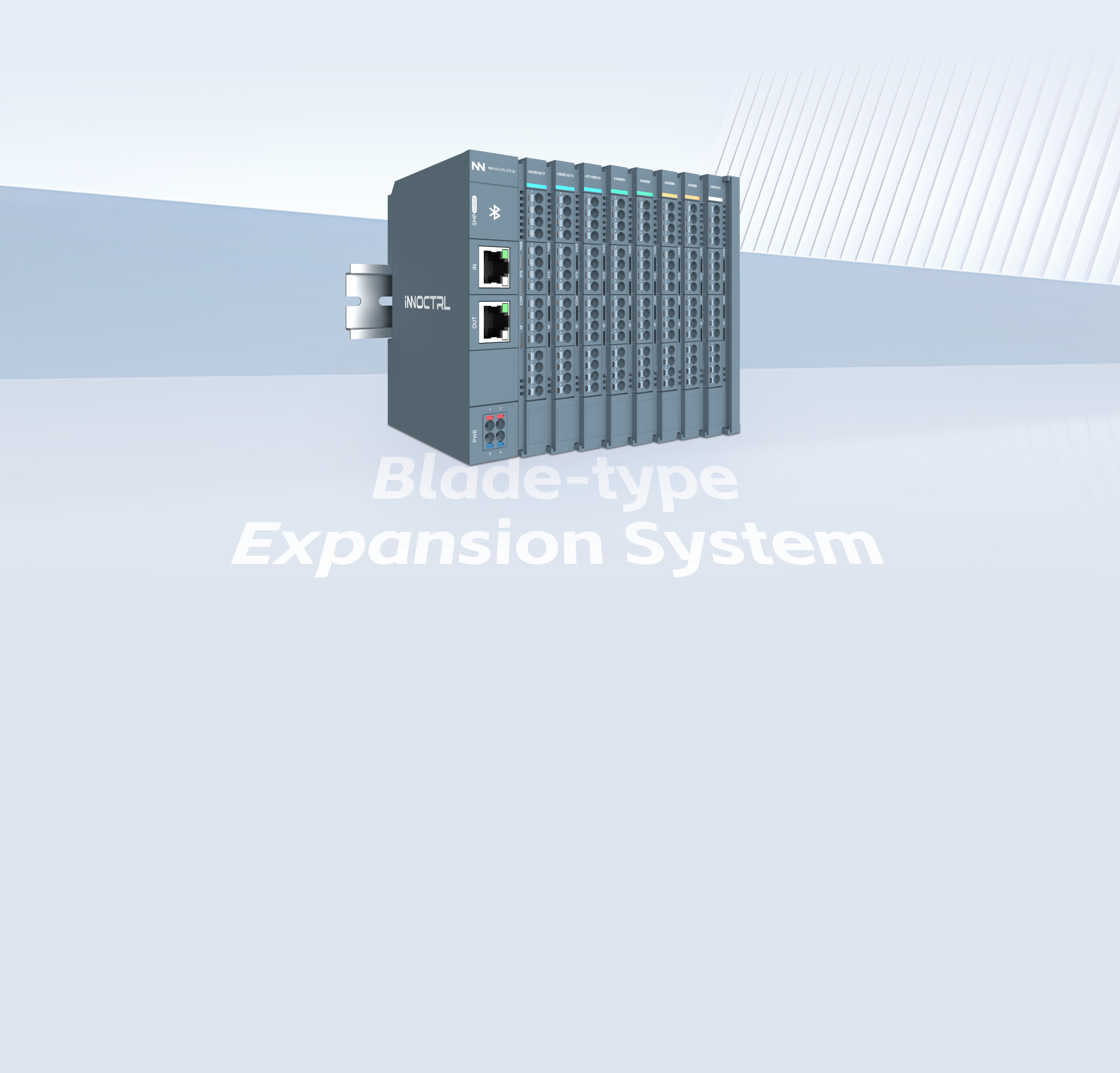

Blade-type Expansion System
Superior Performance
Tool-Free Installation
Strict Standards
Modular Design
Adaptable to Various Industrial Field Systems
Superior Performance, Fast Response
Fast Response
Internal bus speed up to 100Mbps, IO interrupt time <100us, analog conversion speed <62.5us, enabling high-speed, high-precision control.
Precise Control
The coupler's minimum scan cycle can reach 125us, allowing for rapid information acquisition in production. The IO refresh can synchronize with the controller's scan cycle, providing stable support for high-speed response.
Modular Design, Flexible Configuration
Replaceable Interface
The interface can be changed according to the module configuration, saving costs.
Custom Labels
Customers can flexibly apply indicator labels on top of the module according to the on-site environment and scenario.
Grouped Indicator Lights
Indicator lights are displayed in groups, more clearly showing the module's status and functional condition.
Tool-Free Installation, Quick Connection
Space-saving
INNOCTRL functional modules are as thin as 12mm. The blade-style design saves even more electrical cabinet space, making it suitable for more demanding scenarios.
Quick Installation and Removal
Vertical plug-and-pull, detachable terminals. Different terminals only need a gentle push to complete wiring. The non-slip groove design allows users for quick removal.
Quick Maintenance
Tool-free wiring and wire changes avoid the hassle of not having the right tools on hand.
Strict Standards, Suitable for Complex Environments
More Stable Connectors
The module connectors use a clamping design, featuring longer connectors with a larger contact area and greater tightness.
More Reliable Materials
The connectors use a gold-plating process; sweat from hand contact will not corrode them. A ten-year design life ensures the product's long-term stable operation.
More Stringent Standard Tests
Has passed stricter EMC high and low-temperature tests, making it more reliable than industry standards.
Adapts to Various Industrial Field Systems
Supports Mainstream Industrial Protocols
Supports protocols like EtherCAT, Profinet, etc., adapting to mainstream manufacturers and seamlessly integrating with mainstream protocols.
Rich Variety of Types
Supports IO modules with various point counts and types, including analog, temperature, communication, and other types.
Reliable Diagnostics
Channel-level diagnostics for rapid fault information acquisition.
6 Product Highlights
Large-aperture pluggable 4-pin terminal
Fast wiring, tool-free installation and removal
Detachable terminal block
More convenient for installation and maintenance
Built-in Bluetooth function
Pairs with a dedicated device APP
Space-saving
I/O module 12mm ultra-slim design, compact size with multiple channels
Clip-style backplane with enhanced stability
Connector terminals are multi-layer gold-plated for anti-oxidation
Flexible modular design
Multiple bus types, various I/O module types available to choose from

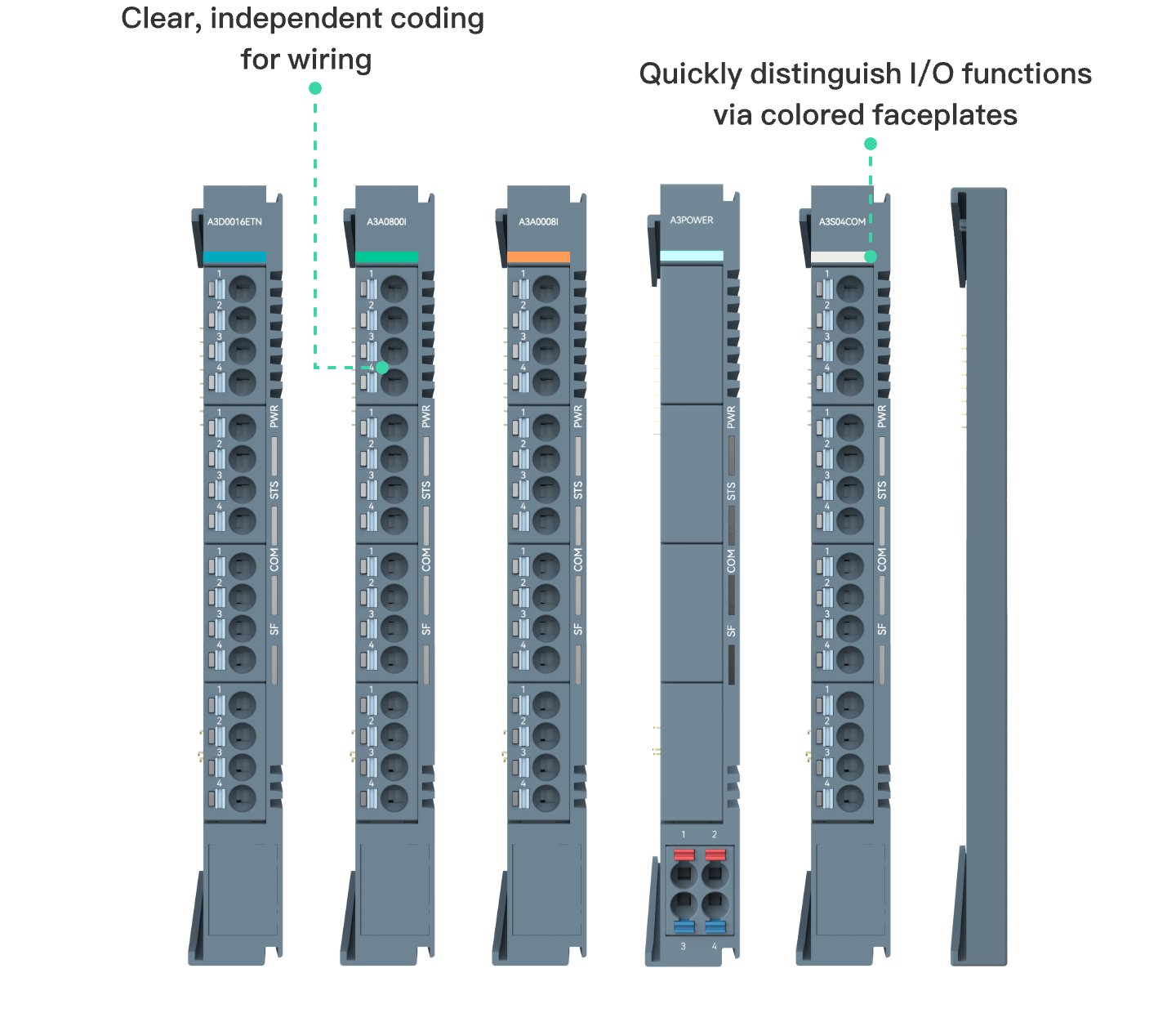

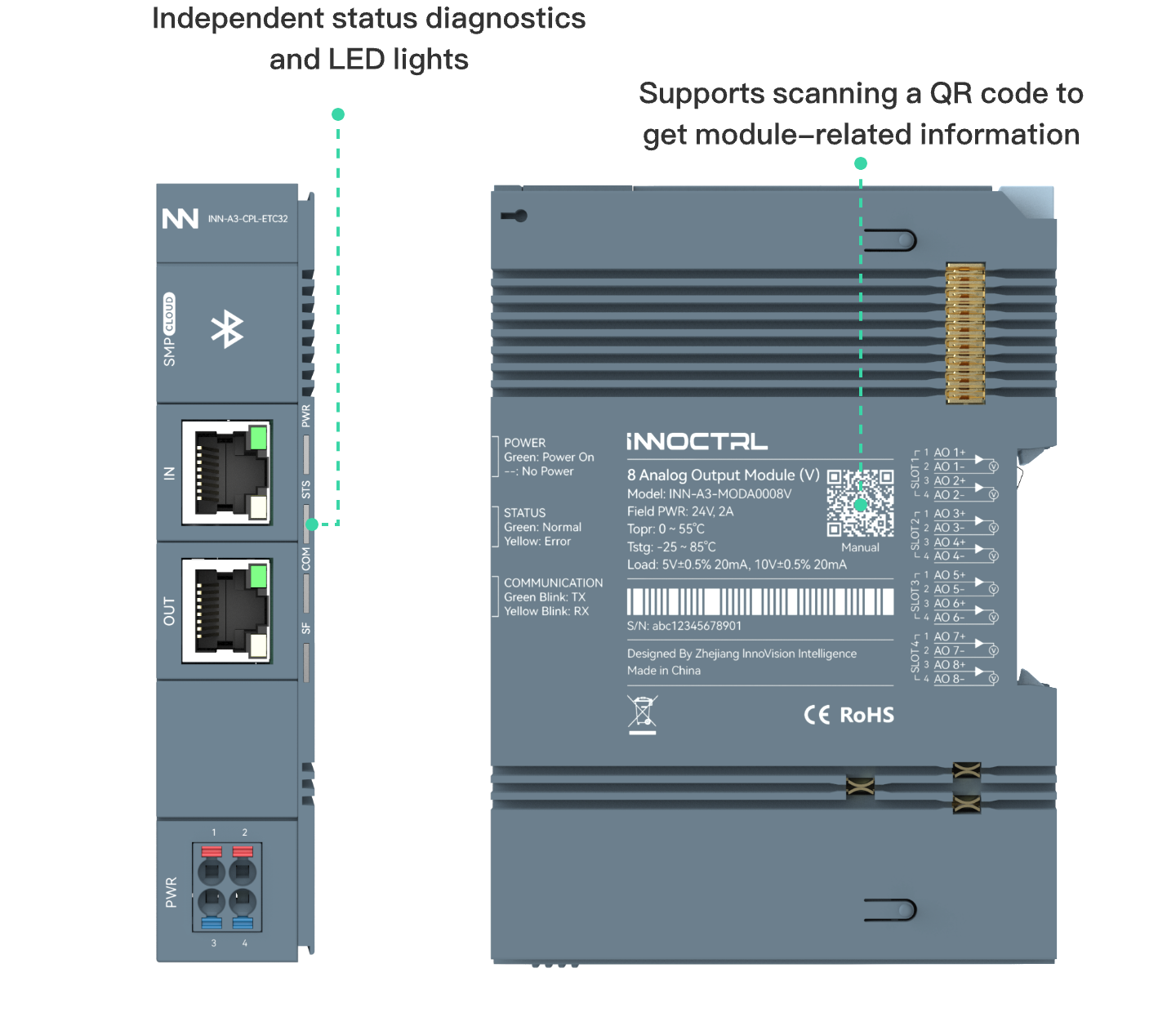

Product Appearance Design
Product Interface Design
Large-bore 4-pin plug-in terminal
More suitable for various wire gauges, no tools required for wiring, speeds up I/O wiring efficiency.
Detachable terminal block design
Allows for quick module replacement without reinstalling cables, minimizing errors caused by installation.
Clip-style backplane with enhanced stability
The module connector uses a clamping design, doubling the stability compared to SMT (surface-mount type). D-BUS style design, the double-sided clamping doubles the stability compared to SMT.
Consistent product quality
Has passed stricter EMC high and low-temperature tests, making it more reliable than industry standards.
Connector gold-plating process
The connector uses a gold-plating process; sweat from hand contact will not corrode it. A ten-year design life ensures the product's long-term stable operation.
Communication Interface
Multiple communication interfaces available
Digital Module
8-channel, 16-channel input/output support
16-Channel Digital
Output Module (PNP)
INN-A3-MODD0016ETP
16-Channel Digital
Output Module (NPN)
INN-A3-MODD0016ETN
16-Channel Digital
Input Module
INN-A3-MODD1600END
8-Channel Input
8-Channel Output
Module (PNP)
INN-A3-MODD0808ETP
8-Channel Input
8-Channel Output
Module (NPN)
INN-A3-MODD0808ETN
Analog Module
8-in/out, current/voltage types available
8-Channel Analog Input Module
(Voltage Type)
INN-A3-MODA0800V
8-Channel Analog Output
Module (Voltage Type)
INN-A3-MODA0008V
8-Channel Analog Input
Module (Current Type)
INN-A3-MODA0800I
8-Channel Analog Output
Module (Current Type)
INN-A3-MODA0008I
Communication Module
4-Channel Serial Port Communication Module
4-Channel Serial Port
Communication Module
INN-A3-MODS04COM
-
Product Overview
-

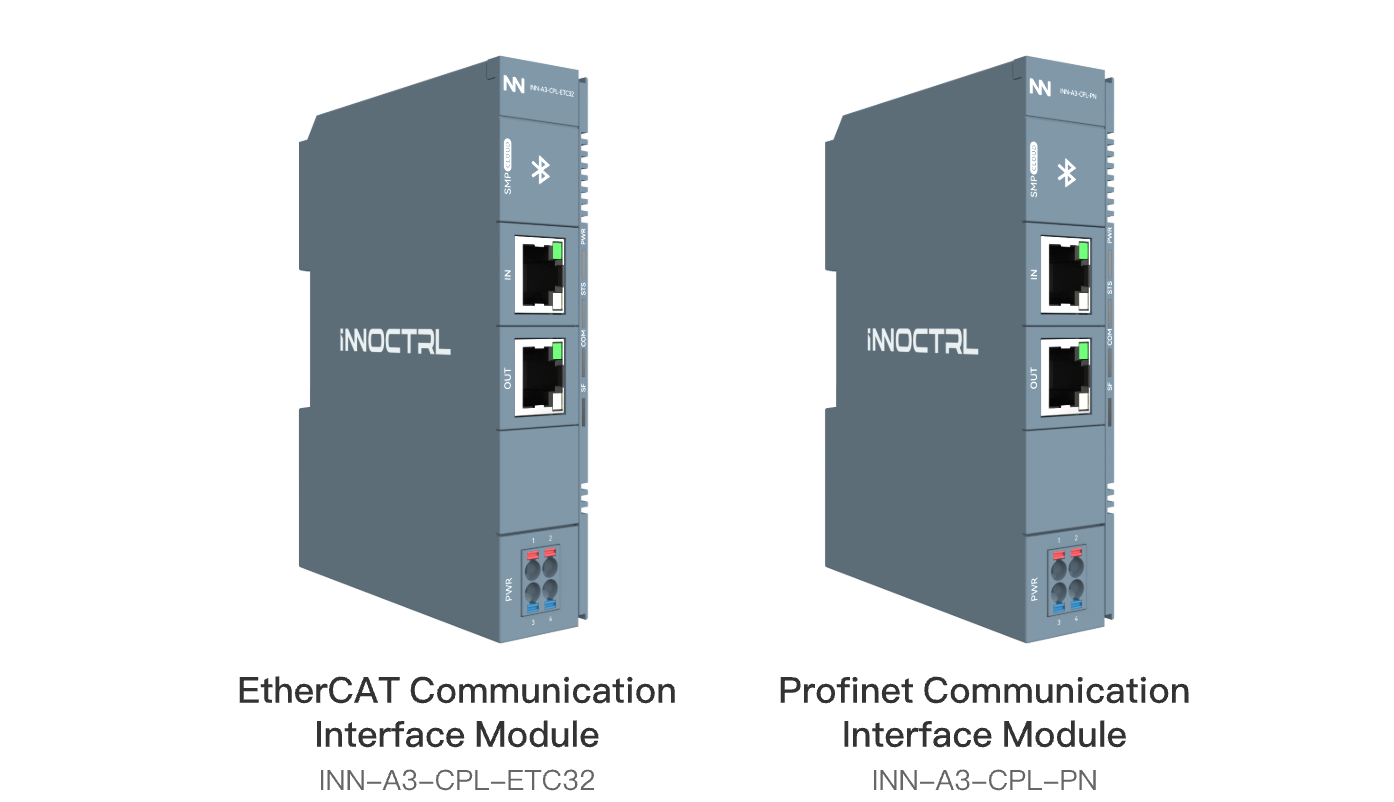

Communication Interface
- EtherCAT Communication Interface Module
- Profinet Communication Interface Module
-
Digital Module
- 16-Channel Digital Output Module (PNP)
- 16-Channel Digital Output Module (NPN)
- 16-Channel Digital Input Module
- 8-Channel Input 8-Channel Output Module (PNP)
- 8-Channel Input 8-Channel Output Module (NPN)
-
Analog Module
- 8-Channel Analog Input Module (Voltage Type)
- 8-Channel Analog Output Module (Voltage Type)
- 8-Channel Analog Input Module (Current Type)
- 8-Channel Analog Output Module (Current Type)
-
Communication Module
- 4-Channel Serial Port Communication Module
| Module Type | Product Name | Product Model | Product Dimensions |
|---|---|---|---|
| Communication Interface | EtherCAT Communication Interface Module | INN-A3-CPL-ETC32 | 118*85*24mm (L*W*D) |
| Profinet Communication Interface Module | INN-A3-CPL-PN | 118*85*24mm(L*W*D) | |
| Digital Module | 16-Channel Digital Output Module (PNP) | INN-A3-MODD0016ETP | 118*85*12mm(L*W*D) |
| 16-Channel Digital Output Module (NPN) | INN-A3-MODD0016ETN | 118*85*12mm(L*W*D) | |
| 16-Channel Digital Input Module | INN-A3-MODD1600END | 118*85*12mm(L*W*D) | |
| 8-Channel Input 8-Channel Output Module (PNP) | INN-A3-MODD0808ETP | 118*85*12mm(L*W*D) | |
| 8-Channel Input 8-Channel Output Module (NPN) | INN-A3-MODD0808ETN | 118*85*12mm(L*W*D) | |
| Analog Module | 8-Channel Analog Input Module (Voltage Type) | INN-A3-MODA0800V | 118*85*12mm(L*W*D) |
| 8-Channel Analog Output Module (Voltage Type) | INN-A3-MODA0008V | 118*85*12mm(L*W*D) | |
| 8-Channel Analog Input Module (Current Type) | INN-A3-MODA0800I | 118*85*12mm (L*W*D) | |
| 8-Channel Analog Output Module (Current Type) | INN-A3-MODA0008I | 118*85*12mm (L*W*D) | |
| Communication Module | 4-Channel Serial Port Communication Module | INN-A3-MODS04COM | 118*85*12mm (L*W*D) |
| Accessories | Terminal Identification Protective Cover | INN-A3-ASSYTPC | 118*85*6mm (L*W*D) |
EtherCAT Communication Interface Module
Product files
| Product Name | EtherCAT Communication Interface Module | |
| Product Model | INN-A3-CPL-ETC32 | |
| Product Dimensions | 118*85*24mm (L*W*D) | |
| System Power Supply | Input Voltage | 24V DC |
| Input Current | 1A | |
| Bus Power Supply | Output Voltage | 5V DC |
| Output Current | 2A | |
| Field Power Supply | Input Voltage | 24V DC |
| Input Current | 1A | |
| Power Isolation | Not isolated | |
| Power Protection | Overcurrent protection, reverse polarity protection, surge absorption | |
Profinet Communication Interface Module
Product files
| Product Name | Profinet Communication Interface Module | |
| Product Model | INN-A3-CPL-PN | |
| Product Dimensions | 118*85*24mm (L*W*D) | |
| System Power Supply | Input Voltage | 24V DC |
| Input Current | 1A | |
| Bus Power Supply | Output Voltage | 5V DC |
| Output Current | 2A | |
| Field Power Supply | Input Voltage | 24V DC |
| Input Current | 1A | |
| Power Isolation | Not isolated | |
| Power Protection | Overcurrent protection, reverse polarity protection, surge absorption | |
16-Channel Digital Output Module (PNP)
Product files
| Product Name | 16-Channel Digital Output Module (PNP) | |
| Product Model | INN-A3-MODD0016ETP | |
| Product Dimensions | 118*85*24mm (L*W*D) | |
| Bus Power Supply | Voltage | Typical 5V DC |
| Current | Typical 200mA | |
| Field Power Supply | Voltage | 24V DC |
| Current | Typical 50mA + Load | |
| Output Type | Digital output, transistor high-side output | |
| Output Method | PNP Type | |
| Output Channels | 16 | |
| Output Voltage Level | 24V DC±10% | |
| Load Type | Resistive load, inductive load, lamp load | |
| Max. Output Current | 0.3A/point, 4A/module | |
| Hardware Response Time | ON/OFF 180us/180us | |
| OFF-state Leakage Current | 10uA | |
| Switching Frequency | Resistive load 100Hz, Inductive load 0.5Hz, Lamp load 10Hz | |
| Output Action Indication | When the output is in the active state, the output indicator light is on (software controlled) | |
| Protection Function | Short-circuit protection, overcurrent protection, overheat protection | |
16-Channel Digital Output Module (NPN)
Product files
| Product Name | 16-Channel Digital Output Module (NPN) | |
| Product Model | INN-A3-MODD0016ETN | |
| Product Dimensions | 118*85*24mm (L*W*D) | |
| Bus Power Supply | Voltage | Typical 5V DC |
| Current | Typical 200mA | |
| Field Power Supply | Voltage | 24V DC |
| Current | Typical 50mA + Load | |
| Output Type | Digital output, transistor low-side output | |
| Output Method | PNP Type | |
| Output Channels | 16 | |
| Output Voltage Level | 24V DC±10% | |
| Load Type | Resistive load, inductive load, lamp load | |
| Max. Output Current | 0.5A/point, 6A/module | |
| Hardware Response Time | ON/OFF 60us/60us | |
| OFF-state Leakage Current | 50uA | |
| Switching Frequency | Resistive load 100Hz, Inductive load 0.5Hz, Lamp load 10Hz | |
| Output Action Indication | When the output is in the active state, the output indicator light is on (software controlled) | |
| Protection Function | Short-circuit protection, overcurrent protection, overheat protection | |
16-Channel Digital Input Module (NPN/PNP)
Product files
| Product Name | 16-Channel Digital Input Module (NPN/PNP) | |
| Product Model | INN-A3-MODD1600END | |
| Product Dimensions | 118*85*24mm (L*W*D) | |
| Bus Power Supply | Voltage | Typical 5V DC |
| Current | Typical 100mA | |
| Field Power Supply | Voltage | 24V DC |
| Current | Typical 80mA | |
| Input Type | Digital Input | |
| Input Method | Source/Sink Type | |
| Input Channels | 16 | |
| Input Voltage Level | 24V DC±10% | |
| Input Current (Typical) | 4mA (Typical value at 24V) | |
| ON Voltage | >15V DC | |
| OFF Voltage | <5V DC | |
| Hardware Response Time | ON/OFF 20us/20us | |
| Software Filter Time | Supported | |
| Input Impedance Reference Value | 6.5k~6.7k | |
| Output Action Indication | When the output is in the active state, the output indicator light is on (software controlled) | |
8-Channel Input 8-Channel Output Module (PNP)
Product files
| Product Name | 8-Channel Input 8-Channel Output Module (PNP) |
| Product Model | INN-A3-MODD0808ETP |
| Product Dimensions | 118*85*24mm (L*W*D) |
8-Channel Input 8-Channel Output Module (NPN)
Product files
| Product Name | 8-Channel Input 8-Channel Output Module (NPN) |
| Product Model | INN-A3-MODD0808ETN |
| Product Dimensions | 118*85*24mm (L*W*D) |
8-Channel Analog Input Module (Voltage Type)
Product files
| Product Name | 8-Channel Analog Input Module (Voltage Type) | |
| Product Model | INN-A3-MODA0800V | |
| Product Dimensions | 118*85*24mm (L*W*D) | |
| Bus Power Supply | Voltage | Typical 5V DC |
| Current | Typical 100mA | |
| Field Power Supply | Voltage | 24V DC |
| Current | Typical 120mA | |
| Input Method | Voltage | |
| Input Channels | 8 | |
| Voltage Input Range | ±5V、±10V、0V～5V、0V～10V | |
| Resolution | 16bit | |
| Input Impedance | 1MΩ | |
| Sampling Type | Synchronous | |
| Conversion Time | Typical 1us (single channel) | |
| Input Filter Frequency | Typical 25kHz | |
| Accuracy (25°C) | ±0.1% (Full Scale) | |
8-Channel Analog Output Module (Voltage Type)
Product files
| Product Name | 8-Channel Analog Output Module (Voltage Type) | |
| Product Model | INN-A3-MODA0008V | |
| Product Dimensions | 118*85*24mm (L*W*D) | |
| Bus Power Supply | Voltage | Typical 5V DC |
| Current | Typical 100mA | |
| Field Power Supply | Voltage | 24V DC |
| Current | Typical 200mA | |
| Output Method | Voltage | |
| Output Channels | 8 | |
| Current Output Range | 0V～5V, 0V～10V | |
| Resolution | 16bit | |
| Output Impedance | >5kΩ | |
| Conversion Time | Typical 2ms (single channel) | |
| Accuracy | <±0.3%(Full Scale) | |
8-Channel Analog Input Module (Current Type)
Product files
| Product Name | 8-Channel Analog Input Module (Current Type) | |
| Product Model | INN-A3-MODA0800I | |
| Product Dimensions | 118*85*24mm (L*W*D) | |
| Bus Power Supply | Voltage | Typical 5V DC |
| Current | Typical 100mA | |
| Field Power Supply | Voltage | 24V DC |
| Current | Typical 200mA | |
| Input Method | Current | |
| Input Channels | 8 | |
| Current Input Range | ±20mA, 0mA～20mA, 4mA～20mA | |
| Resolution | 16bit | |
| Input Impedance | 249Ω | |
| Sampling Type | Synchronous | |
| Conversion Time | Typical 1us (single channel) | |
| Input Filter Frequency | Typical 25kHz | |
| Accuracy | <±0.1% (Full Scale) | |
8-Channel Analog Output Module (Current Type)
Product files
| Product Name | 8-Channel Analog Output Module (Current Type) | |
| Product Model | INN-A3-MODA0008I | |
| Product Dimensions | 118*85*24mm (L*W*D) | |
| Bus Power Supply | Voltage | Typical 5V DC |
| Current | Typical 100mA | |
| Field Power Supply | Voltage | 24V DC |
| Current | Typical 200mA | |
| Output Method | Current | |
| Output Channels | 8 | |
| Current Output Range | 0mA~20mA, 4mA~20mA | |
| Resolution | 12bit | |
| Current Output Load | 100-500Ω | |
| Conversion Time | Typical 2ms (single channel) | |
| Accuracy | <±0.3%(Full Scale) | |
4-Channel Serial Port Communication Module
Product files
| Product Name | 4-Channel Serial Port Communication Module |
| Product Model | INN-A3-MODS04COM |
| Product Dimensions | 118*85*24mm (L*W*D) |
